معلومات تفصيلية |
|||
| مادة: | النحاس | يكتب: | مقطع حبل الأسلاك |
|---|---|---|---|
| بناء الكابلات: | 7x7 أو 1x19 | طول حبل السلك: | 1000 ملم أو حسب المتطلبات |
| قطر حبل الأسلاك: | 1.0 مم، 1.2 مم، 1.5 مم أو حسب المتطلبات | سعة التحميل: | 20 كجم أو أعلى |
| أقطار الكابل: | 1.0-1.5mm | مخرج كابل: | الخروج السفلي |
| المعالجة السطحية: | الساتان كروم | أسلوب: | التخصص |
| حمل الوزن: | 20-100 كجم | الحد الأدنى المسافة: | 2 بوصة |
| وقت التسليم: | 7 أيام بعد 30% دفعة أولى | الحد الأدنى لكمية الطلب: | 1000 قطعة |
| أجزاء النهاية: | التثبيت، تثبيت السقف | ||
| إبراز: | Secure Cable Management Wire Rope Grip Lock,7x7 or 1x19 Cable Looping Gripper,1.0-1.5mm Adjustable Cable Gripper,7x7 or 1x19 Cable Looping Gripper,1.0-1.5mm Adjustable Cable Gripper |
||
منتوج وصف

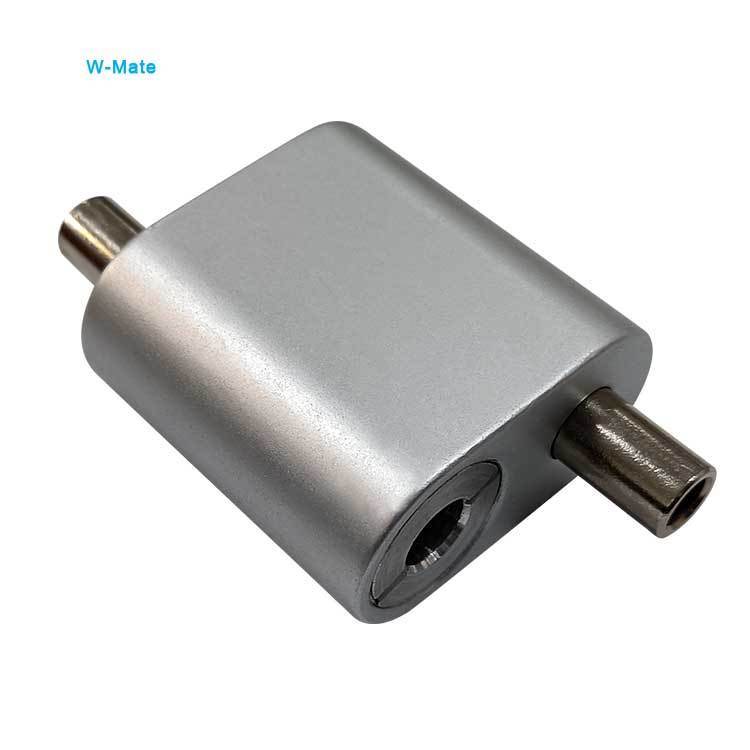

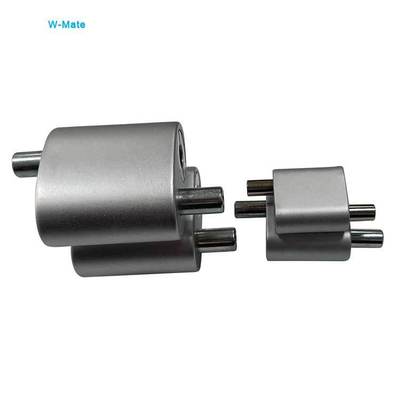

Premium brass wire rope grip lock with loops for secure cable management in suspended ceiling applications.

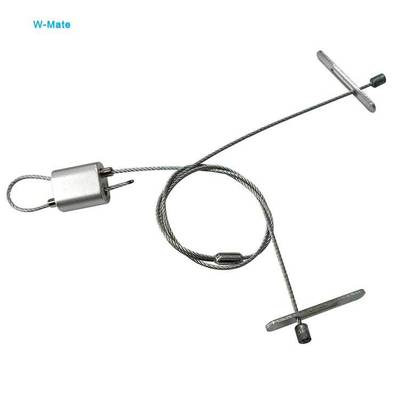

- Insert cable into Looping Gripper
- Pass cable through or around anchor point
- Insert cable back into Looping Gripper
Remove load from cable, depress plunger & adjust cable height. Release plunger to lock cable position.
Note: Maintain minimum 2 inch distance from all suspended objects or support structures.
| Parameter | Details |
|---|---|
| Product Name | Adjustable Wire Rope Grip Lock |
| Material | Brass |
| For Cable Diameters | 1.0-1.5mm |
| Cable Exit | Bottom Exit |
| Surface Treatment | Satin chrome |
| Weight Load | 20-100kg |
| Application | Suspended Ceilings (False Ceiling, Acoustic baffles, etc) |
| Certification | SGS-RoHS |
- Self-locking device creates adjustable loops that can be modified anytime
- Allows for reuse of both the gripper and steel cable
- Simplifies workflow when changing signage or displays
- Ideal solution for retail displays, event planning, and architectural applications
Ideal for hanging light fittings, signs, HVAC systems, pipes, artworks and other suspended applications. Features easy length adjustment and quick release mechanism.
Dongguan Wire Rope Mate Hardware Co., Ltd.
Specialists in lighting suspension kits, display hardware accessories, stamping pieces, wire ropes, and other hardware components for various industries including lighting, display, construction, and retail.
- Inquiry and consulting support
- Design application solutions
- Sample testing support
- Factory visits available
- OEM services including custom branding
- Comprehensive after-sales support
Packaging: Export standard wooden pallet
Shipping: Available by air or sea as requested
The built-in locking mechanism securely grips steel cable for the lifetime of the display. This self-locking device creates adjustable loops that can be modified anytime, allowing for reuse of components and simplifying workflow when changing signage.
Yes, we've conducted laboratory tests on the minimum breaking loads for all our looping gripper models.
Custom imprinting increases delivery time by 3-5 days.
For more product information, please contact our customer service team.
