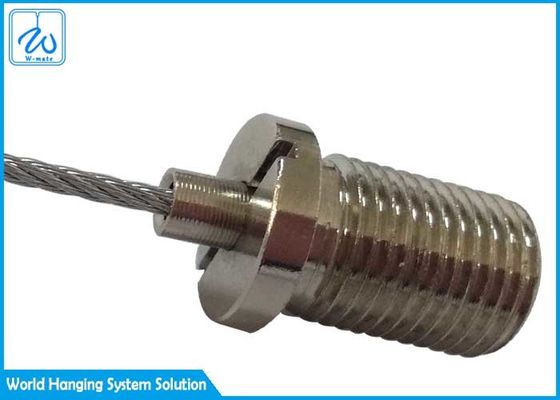

Adjustment Brass Cable Gripper With M5 External Thread For Track Light

Detailed Information

Feature Of Cable Gripper With External Thread

Cable gripper, (also called cable slider or cable fastener): Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.

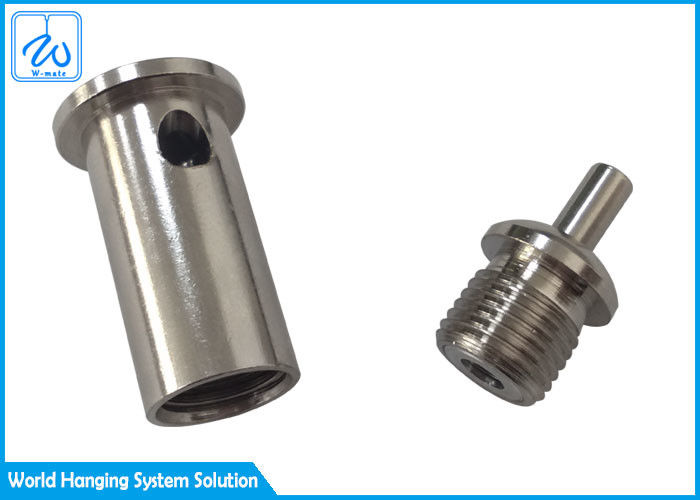

Consists of:
1) Body: holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
2) Locking spheres: 3 sphere arranged in a triangular pattern that will hold the cable in place via pressure.
3) Wedge or bush: transfers the pressure of the spring to the spheres.
4) Spring: Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.
5) Lid: to close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.

Technical Parameters of Cable Gripper With External Thread

Advantages of Cable Gripper With External Thread

Art cable grippers are sophisticated in design and easy to use.
A spring-loaded ball bearing mechanism allows the cable gripper to move freely along the cable whenever the plunger is depressed. When the plunger is released the gripper locks to the cable.
The greater the weight, the stronger it grips.

Custom order information of Cable Gripper With External Thread

Diameter:regular or customized
Thread Size:regular or customized
Surface Treatment:Plating Chrome or Nickel
Color:customized
Packaging Logo:regular or customized
Delivery time (first delivery):3-7 working days for sample orders, 15-25 days for bulk orders
Payment method:T/T is 30%-70%
Payment methods:T/T, PayPal, etc.
Shipping port: FOB Shenzhen or FOB Shanghai
Minimum order quantity:1000pcs

Other Accessories for Use

Steel Wire Rope	Hook Cable	Ceiling Attachment	T-Bar

Packaging Information

500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.

International Shipping Around the World

All the Cable Gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

FAQ:

Can we lock a screw on the bottom of the cable gripper to fix it on our linear light?

Please provide the dimensions of your linear light. We have T-type screws, round screws and square screws.

How to place an order?

We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.

How do you ship the goods and how long does it take to arrive?

1, By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2, Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
3, Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
