ROSH Personalized Brass Cable Gripper / Aircraft Cable Fixture Hangers
تفاصيل المنتج:
| مكان المنشأ: | دونغغوان ، الصين |
| اسم العلامة التجارية: | w-mate |
| إصدار الشهادات: | SGS,ROSH |
| رقم الموديل: | WCG-F114 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1000 قطعة |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | حقيبة PE + حقيبة PP + كرتون (إذا كان لديك متطلبات أخرى، يرجى الاتصال بنا) |
| وقت التسليم: | 10-15 أيام العمل |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 100،000pcs/شهر |
|
معلومات تفصيلية |
|||
| اسم المنتج: | عقدة كابل نحاسية | مادة: | النحاس |
|---|---|---|---|
| إصدار الشهادات: | SGS,ROSH | التطبيق: | لنظام تعليق الأسلاك |
| الحد الأدنى لكمية الطلب: | 1000 قطعة | مهلة: | 7 أيام إذا كان هناك ما يكفي من المواد في المخزون |
| إبراز: | wire gripper tool,steel cable gripper,steel cable gripper |
||
منتوج وصف

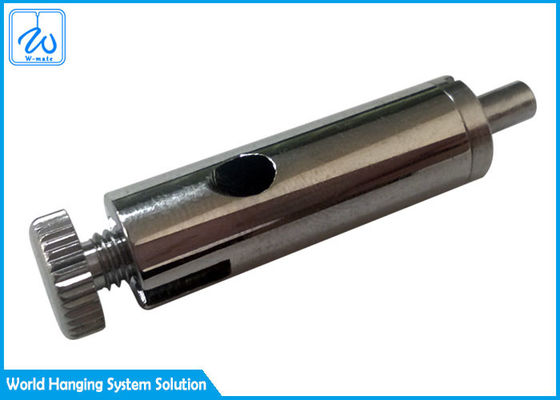

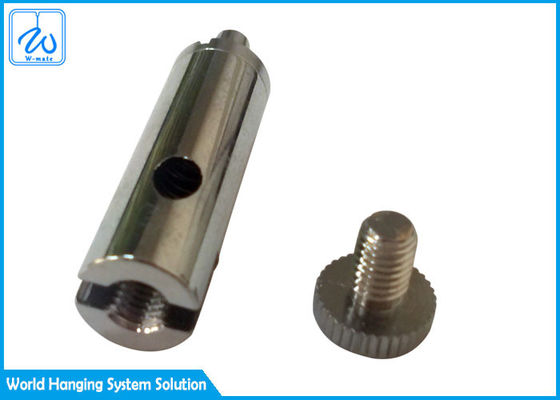

Personalized Brass Cable Gripper / Aircraft Cable Fixture Hangers
Description:
Cable gripper, (also called cable slider or cable fastener): Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.
Consists of:
1) Body: holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable
2) Locking spheres: 3 sphere arranged in a triangular pattern that will hold the cable in place via pressure
3) Wedge or bush: transfers the pressure of the spring to the spheres
4) Spring: Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant
5) Lid: to close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.
Parameter:
| Material | Brass | Cable Construction | 7x7 or 7x19 |
| Standard | AISI, ASTM, BS, DIN, GB | Safe Working Load | 2.5KG,Or Depends on cable diameter |
| MOQ | 1000pcs | Sample | Free Sample (Please contact our customer service) |
| Service | OEM&ODM | Application | For lighting hanging |
Brass Cable Gripper / Aircraft Cable Fixture Hangers are sophisticated in design and easy to use.
A spring-loaded ball bearing mechanism allows the cable gripper to move freely along the cable whenever the plunger is depressed. When the plunger is released the gripper locks to the cable.
The greater the weight, the stronger it grips.
Company profile:
We focus on the production and design of suspension system accessories.
Provide lighting installation, artwork display system, sign hanging, HVAC.
We have our own production workshop,You need customized products, and we can do it for you.
For example, shape design, configuration and color can be specified if you have special requirements.
In addition, our engineers can also provide you with technical support and design professional suspension scheme.
We adhere to the concept of "common progress",To meet the different needs of customers and create a brilliant career together.
If you’re still unsure and would like to learn more about our hanging display systems, or any of the other products we have available on our website, including our decorative wall panelling, please don’t hesitate to get in touch.
Our friendly team are more than happy to assist you.
You can reach us by calling us or by sending an email, fill in our online enquiry form and we’ll get back to you as soon as possible.
